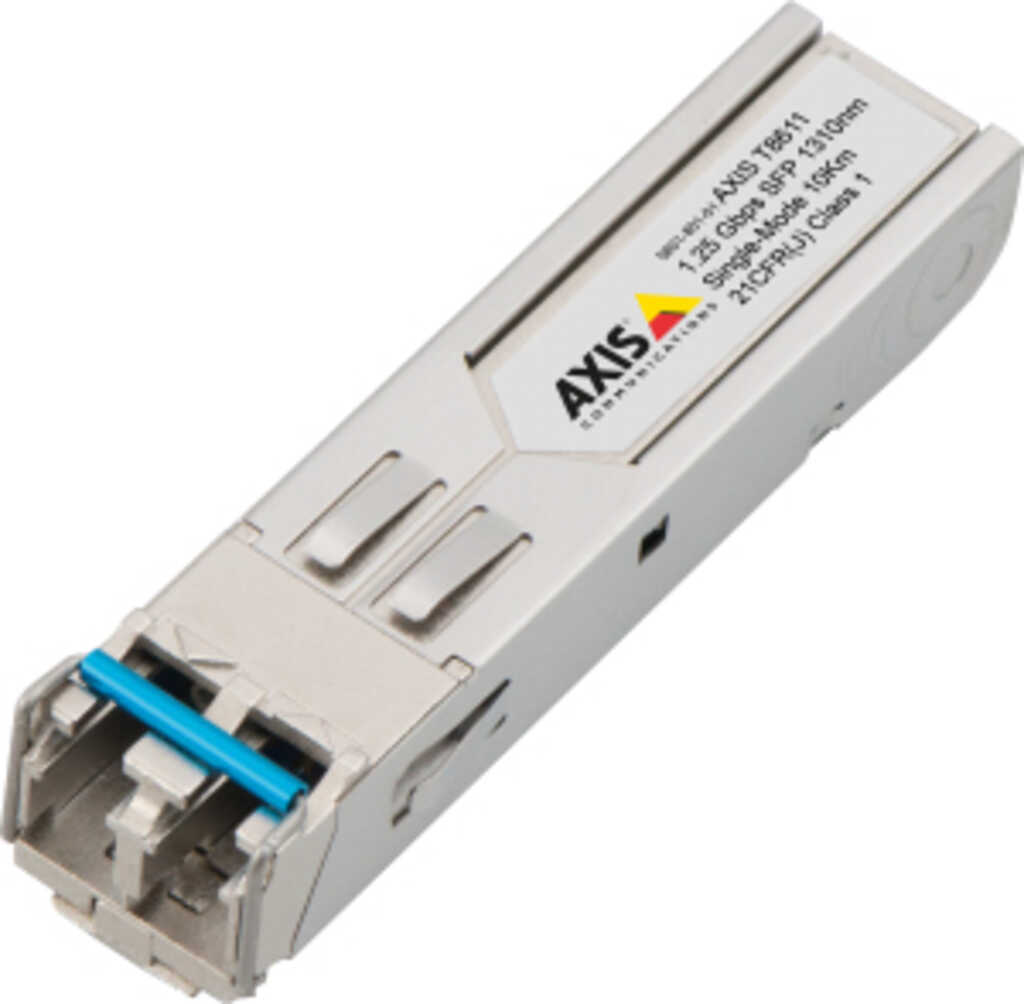

AXIS T8611 SFP Module LC.LX, Single-mode fiber module for up to 10 km transmission range

• Up to 10km range
• Single-mode fiber
• Link-loss feature
• Industrial gradeextended temperature range
• Complies with SFP MSA

AXIS T8611 SFP Module LC.LX is a small form-factor pluggable SFP transceiver that supplies network devices, such as a switches or routers, with a fiber optic network connection. It is industrial grade with a wide temperature rangebetween -40 Cto 65C, and it includes loss of signal feature that enable network redundancy.

Complying with SFP Multisource Agreement MSA, it is easy to install into compliant ports at any time without interrupting the online operation of the host equipment. Long wavelength 1,310nm FP laser diodes enable data transmission up to 10km on a single-mode 9/125m optical fiber. The module is tested and verified with Axis productssuch as AXIS T8516 PoE+ Network Switch.

Link-loss feature for network redundancy

The loss of signal LOS feature allows for the system to recognize a lost connection between a specific hardware For example,AXIS Network Cameras and the host. For optimized network redundancy, AXIS T8611 signals the hardware in case of a lost connection or unusable connection for network traffic. This allows for the hardware to redirect the network traffic through a fallback connection, for example via RJ45.

For long distance connections

Fiber optic connections are typically used in city surveillance, airports and other long distance installations, where lighting strikes are a threat or great connection distances are required.
