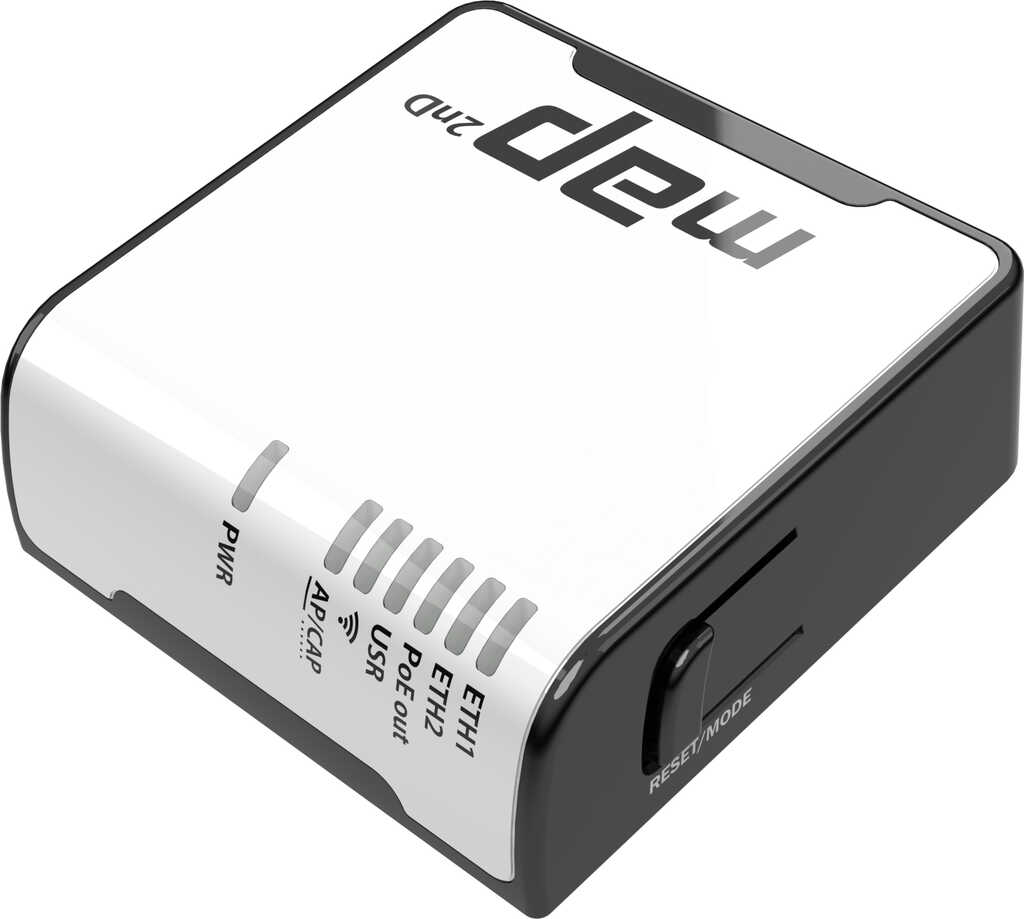

MikroTik RouterBOARD mAP 2nD, Wi-Fi 4, 300Mbps (2.4GHz) Access Point

mAP 2n

The mAP micro Access Point is a tiny size wireless 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.

Product specifications

Details

Product code RBmAP2nD

CPU nominal frequency 650 MHz

CPU core count 1

Size of RAM 64 MB

10/100 Ethernet ports 2

10/100/1000 Ethernet ports 0

MiniPCI slots 0

MiniPCI-e slots 0

Wireless chip model AR9331-AL1A

Wireless standards 802.11b/g/n

Number of USB ports 1

Power Jack 1

802.3af support no

PoE out Yes

PoE in Yes

Supported input voltage 10 V - 57 V

Voltage Monitor No

PCB temperature monitor No

CPU temperature monitor No

Dimensions 68x68x19mm

Operating System RouterOS

Operating temperature range -10C to +70C tested

License level 4

Antenna gain DBI 1.2

Current Monitor No

CPU AR9331-AL1A

Max Power consumption 2 W

SFP ports 0

SFP+ ports 0

USB slot type microUSB type AB

Number of chains 1

Serial port None
